Name: Dual Air Fusion IQ
Brand: Smokey Hill Designs
Price: 12007.0 CAD
Availability: InStock

$12,007.00

Power Type

120 v; 15 amps; 1800 w (Part # XRF2 120)

240 v; 15 amps; 3500 w (Part # XRF2 240)

Features

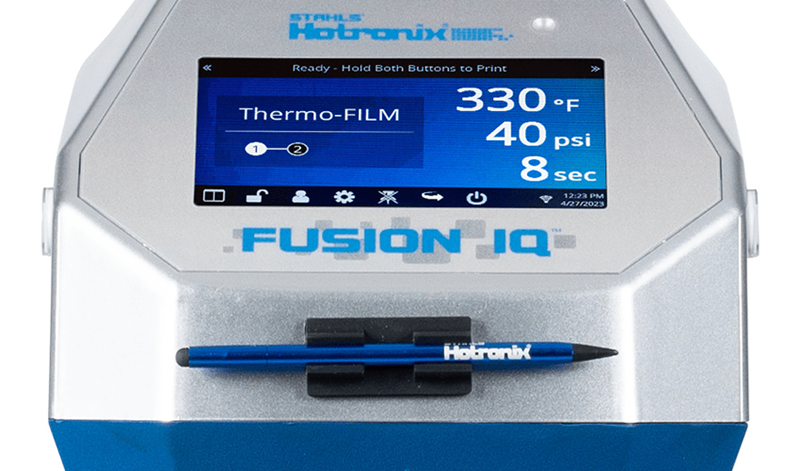

Touchscreen control board with programmable presets, cloud connectivity for operator analytics, and fully digital time, temperature, and pressure readouts.

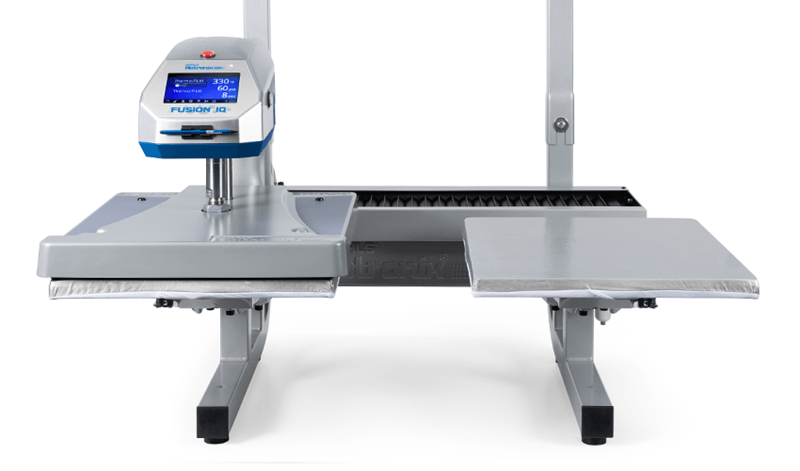

With the functionality of two 16" x 20" (40 x 50 cm) heat presses, this innovative machine offers effortless operation controlled by the push of two buttons and tap of a foot pedal.
Digital pressure is programmable and auto-adjusts based on product thickness, eliminating misprints and manual adjustments.

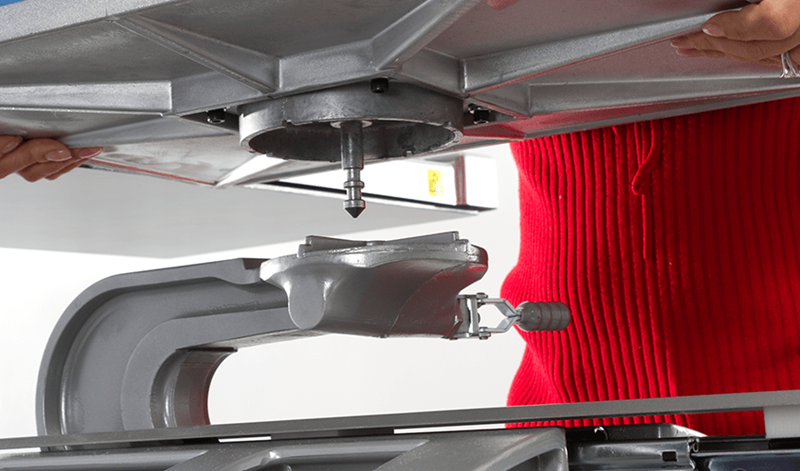

Cantilever design makes it easy to swap out lower platen and load garments onto the lower platen to easily tackle any hard-to-decorate area.

Specifications

Dual Air Fusion IQ® standard
Actual Dimensions: 38" x 38" x 26"
(97 x 97 x 66 cm)
Actual Weight: 260 lbs (118 kg)
Shipping Dimensions: 45" x 45" x 35" (114 x 114 x 89 cm)
Shipping Weight: 410 lbs (186 kg)

- Made in the USA
- Cast-in tubular heating
- Powder coated finish
- UL/ULC/CE
- 120 v; 15 amps; 1800 w (Part # XRF2 120)
- 240 v; 15 amps; 3500 w (Part # XRF2 240)

NOTE PLEASE SPECIFY VOLTAGE

*REQUIRES AIR COMPRESSOR (NOT INCLUDED) WITH MINIMUM:
1 HORSEPOWER AND 8 GALLON HOLD TANK, 120 PSI. USES 3.8 CFM

Warranty

Dual Air Fusion IQ®
Heating Element - Lifetime
Framework - 5 Years
Circuit Board - 2 Years
All Other Parts - 1 Year

We work very hard to get all standard wood orders placed before 1PM EST out the same or next business day. Exceptions include PatternPly® presale orders, custom orders and orders placed during new releases, flash sales, or during peak holiday season (mid-November to mid-December).
