Bambu Lab AMS - Automatic Material System
  • Bambu Lab AMS - Automatic Material System
  • Bambu Lab AMS - Automatic Material System product photo 2

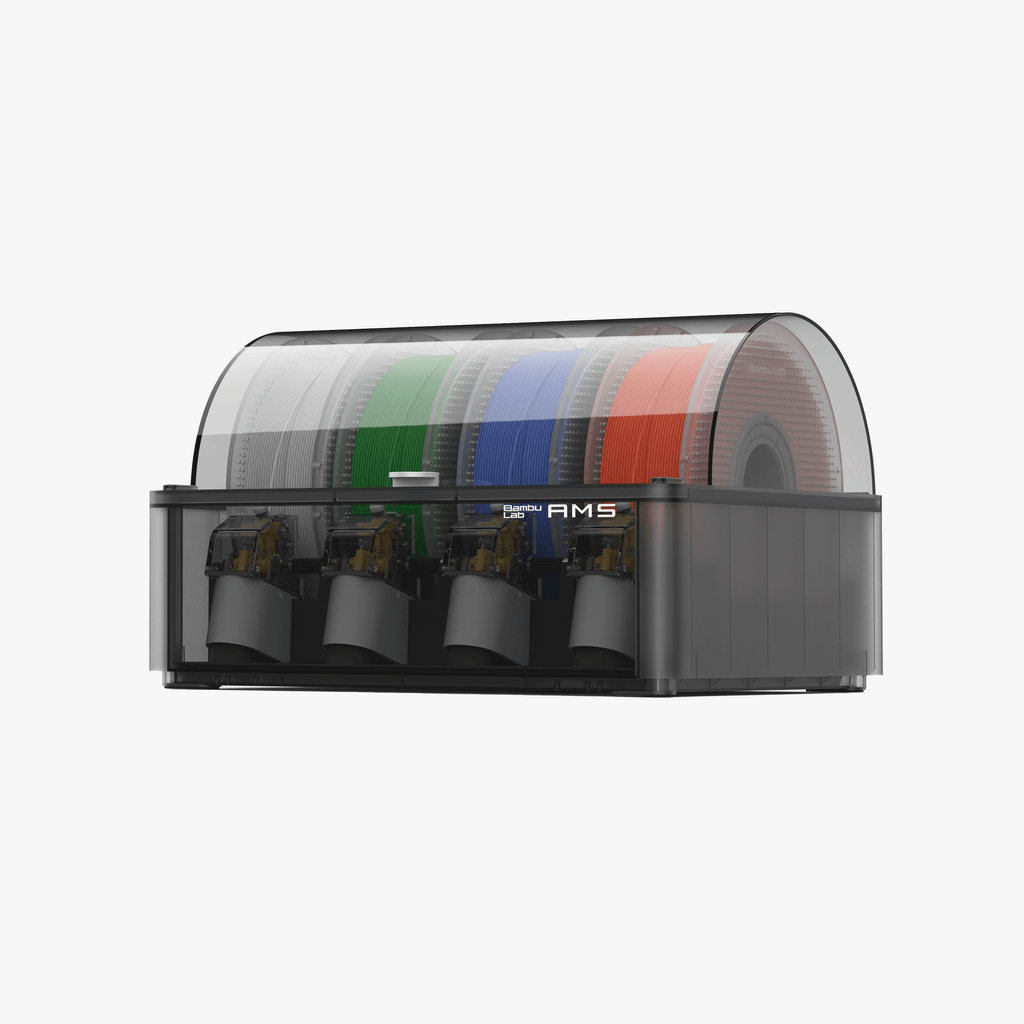

  • Bambu Lab AMS - Automatic Material System product photo 3

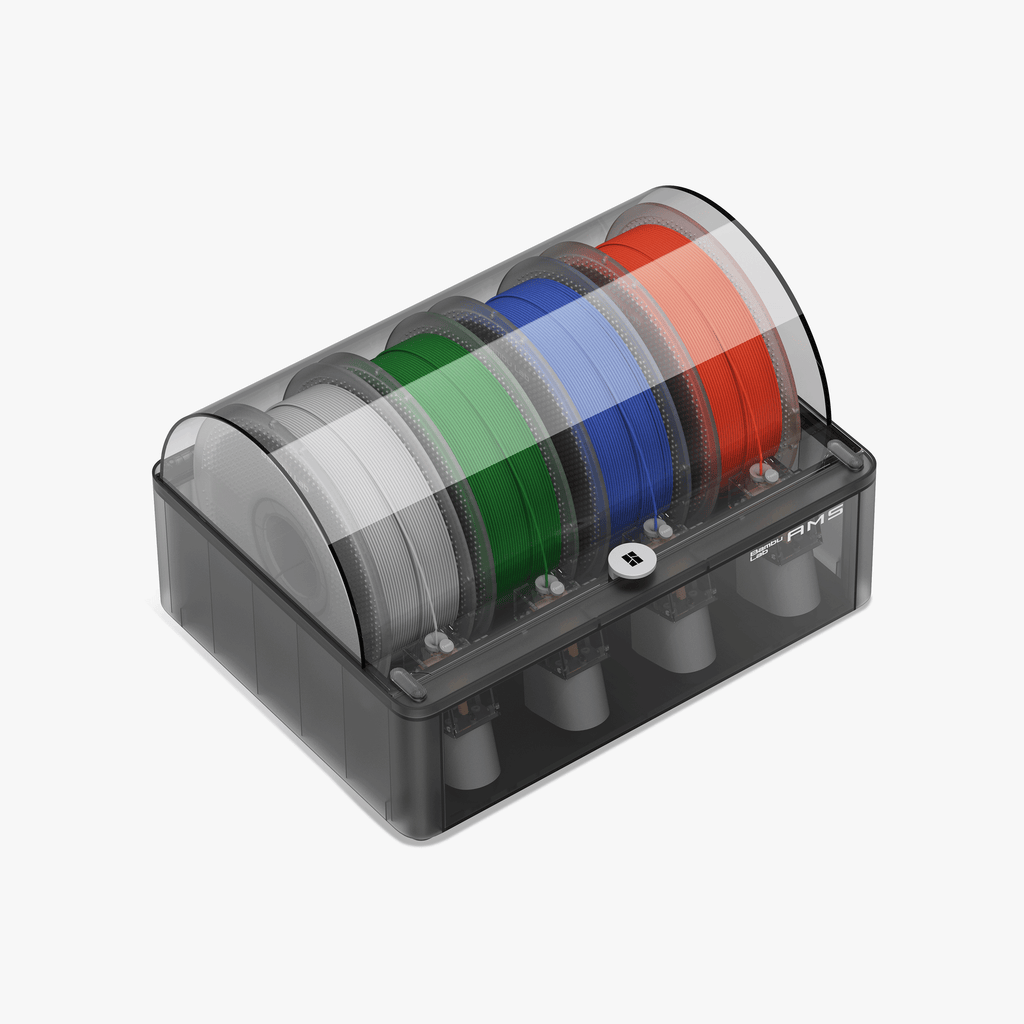

  • Bambu Lab AMS - Automatic Material System product photo 4
  • Bambu Lab AMS - Automatic Material System product photo 5
Bambu Lab AMS - Automatic Material System
$358.00
Printer Type

Sold out — get notified

Leave your email and we'll let you know when it's back.

If you plan to connect multiple AMS units together, you will need to purchase the AMS Hub.

Product Features
  • Multi-Colors/materials Capability
  • Keep Filament Dry
  • Filament Runout & Winding Detection
  • AMS Filament Backup
  • The AMS is compatible with P2 series printers with extra accessories needed. Please make sure to select corresponding accessories in the add-on section according to your use case.
  • Please read the notes above for model-specific requirements
  • Important notice
    The AMS requires specific accessory configurations for various Bambu Lab 3D printers. All accessories mentioned in the description need to purchase separately
    See the Multiple AMS Units Connection Guide for detailed setup instructions.
    For A series owners:
    To connect AMS unit(s) to A1 series printer, an A1 series AMS Hub (SA013) is required.
    A1 series printer can connect up to 4 AMS units (including AMS HT, AMS, AMS 2 Pro).
    Note: AMS Lite cannot be used in combination with other AMS units.
    For X1/P1 series owners:
    To connect a single AMS unit to X1/P1 series printer, a Filament Buffer (SA003), a PTFE Tube Coupler (FAZ006), and a 4-pin Cable (CAB002-N) are required.
    To connect multiple AMS units, an AMS Hub (SA002-N), a PTFE Tube Coupler (FAZ006), and a 4-pin Cable (CAB002-N) are required.
     X1/P1 series printer can connect up to 4 AMS units (including AMS HT, AMS, AMS 2 Pro).

    For P2 series owners:
    To connect one or two AMS unit(s) to P2S, a P2S Filament Buffer (SA011) is required.
    To connect more than two AMS units, a P2S Filament Buffer (SA011) and 4-in-1 PTFE Adapter(s) (FAZ013-N) are required.
    P2S printer can connect up to 4 AMS units (including AMS, AMS 2 Pro) and 4 AMS HT units.
    For H2S owners:
    To connect more than one AMS units to H2S, 4-in-1 PTFE Adapter(s) (FAZ013-N) are required.
    To connect a single AMS unit, no extra accessory is required.
     H2 series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro) and 8 AMS HT units.

    For H2D/H2C owners:
    To connect more than two AMS units to H2D/H2C, a 4-in-1 PTFE Adapter(s) (FAZ013-N) are required. For better performance, we recommend 4-in-1 PTFE Adapter II (SA014) for H2C.
    To connect one or two AMS unit(s), no extra accessory is required.
     H2 series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro) and 8 AMS HT units.
